MAXUS V80 NEGATIVE PRESSURE AMBULANCE

Hero

Malaysia's first negative pressure ambulance

The maxus v80
negative pressure ambulance

A first of its kind is the Frontliner Solution to flatten the curve during this Covid 19 pandemic. Over 200 units of these custom built ambulances designed by SAIC were assembled for immediate usage in Wuhan. Following its success, the ambulance has been purchase by the governments of Australia, Saudi Arabia, Bahrain and Qatar to manage the crisis.




NEGATIVE PRESSURE SYSTEM

CUTTING EDGE TECHNOLOGY

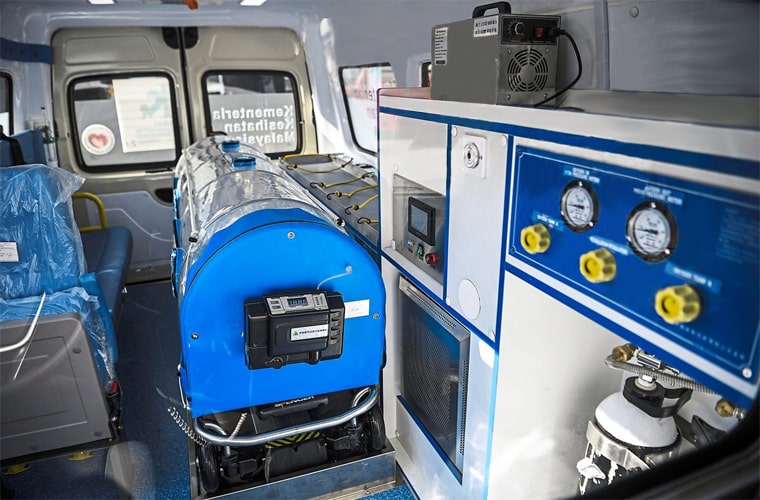

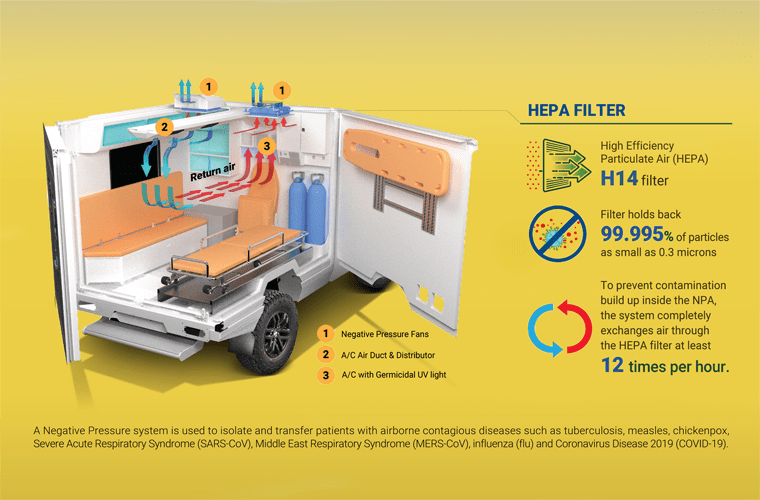

The ambulance is equipped with a negative pressure air system for the transport of patients with airborne contagious diseases to achieve ‘negative pressure isolation’ by effectively guaranteeing the air pressure inside the vehicle is lower than the outside at all times. The system and pressure difference ensures that air can only come into the cabin, and does not leak out into the environment without first going through the HEPA filtration system.

FILTRATION SYSTEM

At the same, the HEPA filters equipped in the vehicle filters and sterilizes air in the medical cabin, trapping the pathogens and prevents them from escaping outside the vehicle when air is circulated out. This ensures constant circulation of fresh air into the cabin, and at the same time minimizes the probability of cross infection between medical staff and patient, ensuring safety for all parties.


NEGATIVE PRESSURE AMBULANCE


Vehicle Features

Model


Vehicle Specifications

Performance

    Engine2.5 Turbo
    Fuel SystemDiesel
    Transmission6 Speed Manual
    Horsepower136hp / 3800rpm
    Torque330nm / 2600rpm
Dimensions

    Length5,700 mm
    Width1,998 mm
    Height2,345 mm
    Wheelbase3,850 mm
    Turning Radius14,800 mm
    Cargo Area Length3,300 mm
    Cargo Area Width1,770 mm
    Cargo Area Height1,380 mm
    Gross Vehicle Mass3,500 kg
    Front Axle Capacity1,700 kg
    Rear Axle Capacity1,800 kg
    Payload1,419 kg
    Nett Weight2,081 kg
Brake & Suspension

    Brake System (Front)Ventilated Disc
    Brake System (Rear)Disc
    Suspension (Front)Macpherson Struts
    Suspension (Rear)Leaf-spring
    SteeringHydraulic Power Assist
    Wheels & Tires17” Alloy Wheels with 255/55 R17 Tyres
Exterior

    MudflapsFront and Rear
    Halogen HeadlightsYes
    Side stepsYes
Safety & Security

    Energy Absorbing Steering SystemYes
    ABS+EBDYes
    Parking SensorsYes
    Vanity MirrorsYes
    Dual Front AirbagsYes
    Driver’s Seatbelt ReminderYes
    Engine ImmobilizerYes
Convenience & Accessories

    Rear Window DefrosterYes
    Central LockingYes
    Auto LatchYes
    Power WindowsYes
    One Touch Driver WindowYes
    Tilt Adjustable Steering WheelYes
    Cup HoldersYes
    Lighter & AshtrayYes
    Rear A/CYes
    4-Speaker Audio SystemYes
    BluetoothYes
